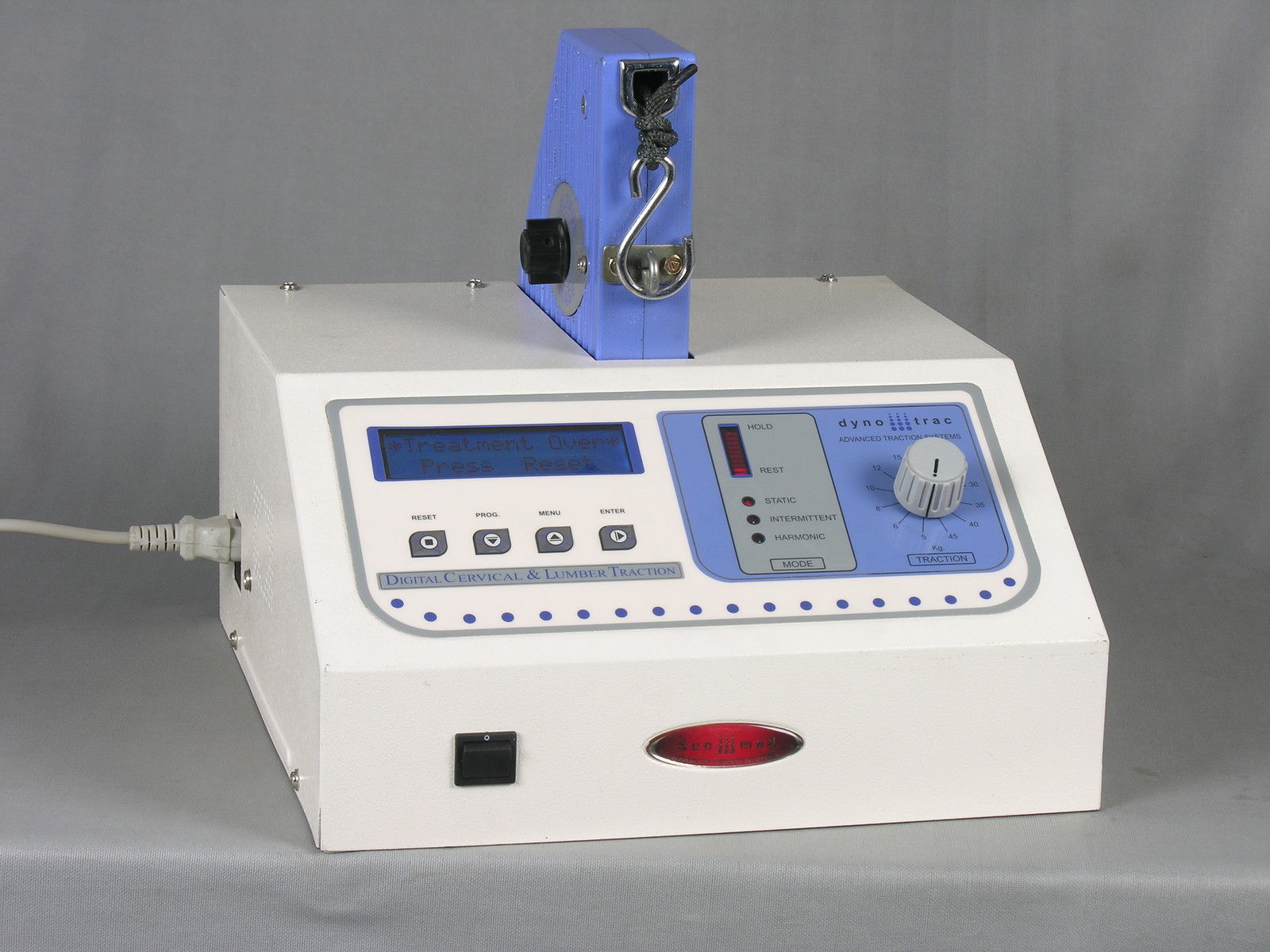

Professional use Cervical & Lumber Traction Machine Model Dyno Trac LCD Display
KNOWLEDGE BASE OF TRACTION UNIT :
Cervical Spinal Traction is accepted as effective for short term relief of neck pain. It can relieve muscle spasm and never rood compression by stretching soft tissues and increasing the spaces between cervical vertebrae.
Lumber traction can relief pressure on compressed nerves, help muscles relax and reduce muscle spasms. Traction increases the space between vertebrae- reducing pressure on
interavertebral discs and nerve root.
Dyno Traction Features:
Dyno Trac is continuous and intermittent traction unit. It is ideal for both cervical and lumber traction. Soft touch membrane keys are used to select the parameters. Weight and whole time/ rest time can be set with 1 unit step. Traction force from 5 kg. to 45 kg. (up to 90 Kg with doubler). High quality imported heavy duty DC motor for durability and smooth functions.
MAIN FEATURES:
Accurate & sturdy traction unit.
Noiseless, reliable, durable heavy- duty Motor.
Patient-operated Safety Switch
Users friendly LCD interface Menu driven operation.
Unit will save User’s parameter in memory which can be use instantly by selecting only programme number.
Progress graph shows process of operation.
Patient interrupt switch buzzer & visual indication.
Smooth and Noiseless Operation.
Technical Specification :
Traction Force : 5 to 45Kg (in 12 Steps ) with Double upto 90 Kgs.
Mode : Static, intermittent,Harmonic
Hold Time: 1 sec.- 99 Sec
Rest Time : 1 sec.- 99 Sec
Treatment Time : 1 Min. to 99 Min.
Alarm: At the end of treatment and while Activation of patient switch
TECHNICAL DATA
Mains Voltage – 220/ 110 V/ 50/60Hz
Weight - 12 Kgs.
Supplied with following Accessories:
Main Unit
Cervical Collar
Spreader Bar
Pelvic Belt
Traction Doubler
Mains cable with socket will be provided as per country requirement
Patient Safety Switch
& Fitting Accessories
